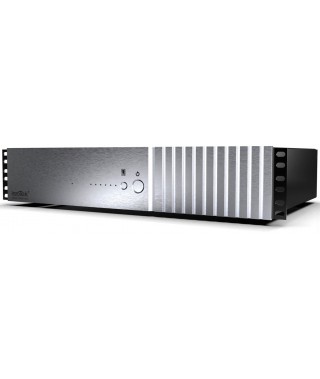

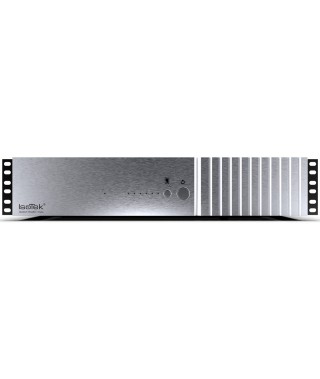

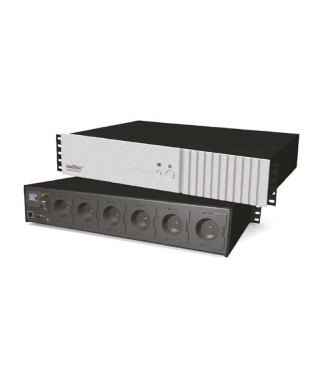

A 2U (89mm) high rack width component, offering full system control of connected electronics through RS232, LAN, and over WiFi through a secure online interface and dedicated codex for Control 4 and Crestron. Theta features six UK (BS 1363), European Schuko or American 3-pin output sockets along with RS232 via traditional and USB ports, LAN Ethernet port for WiFi control and antenna supporting wireless connection. Input power is via 16A IEC C19/20 connection. Theta also features a sophisticated circuit to remove both Differential and Common Mode mains noise from each output socket stopping mains noise cross contamination between connected electronics. Theta offers 67,500A protection from dangerous power surges and voltage spikes.
Features
Name each outlet with connected electronics
Turn on / turn off each outlet independently
Remote reboot & sequential start-up
Programmable delay times between each outlet upon start-up
Control each outlet independently with date and time start-up
Combine two or more units into named groups
Manage power usage and overview power consumption
Protection against power surges and voltage spikes
Power cleaning network for each outlet and RFI reduction of 60dB

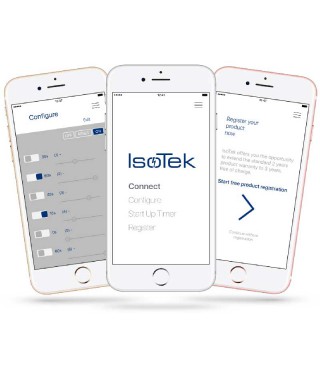

Control through RS232, LAN, and over WiFi through a secure online interface and dedicated codex for Control 4 and Crestron
Specifications
Output sockets: 6
Outlet socket style: UK (BS 1363), EU Schuko, US 3-pin
Mains voltage: 100-240V / 50-60Hz
Amperage: 16A
Total (continuous) power: 3680W (230V) / 1840W (115V)
Protection rating: 67500A
Dimensions (mm): 448 x 305 x 89 (WxDxH)
