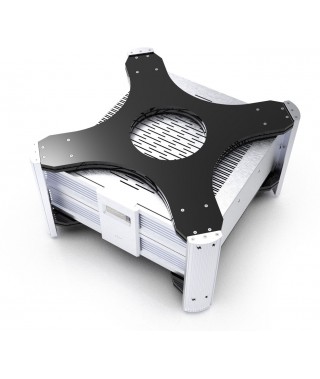

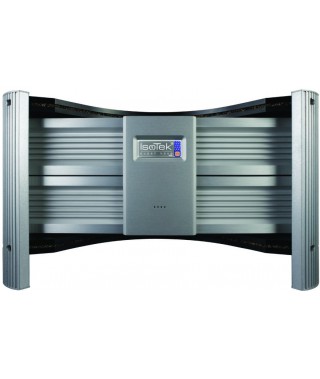

IsoTek EVO3 Super Nova Power Conditioner

The new addition to the Ultimate Series, Super Nova is the most sophisticated (passive) front-end source component power cleaning system IsoTek has developed so far.  Unlike some power clean concepts Super Nova not only adjusts to the connected load, it creates the ultimate barrier to differential mode noise cross-contamination but also has the virtue of high transient power handling ability should it be required.

Removes both common mode and differential mode mains noise.

Over 100,000A (1840 joules) of instantaneous protection for each output socket.

Eight unique conditioning stages ensure optimal isolation between each outlet, eliminating differential mode cross-contamination.

KERP© (Kirchoff’s Equal Resistance Path) technology ensures equal resistance and equal power delivery to all outlets, with no interference from one socket to the next.

Available with UK, EU, US, Swiss and Australian (Chinese) sockets

Features

Eight medium-current outlets, rated at 16A, features a sophisticated new choke which allows a series connection that quadruples the inductance giving a massive increase in filtering at a constant 10 Amps if required.

IsoTek VAD barrier – To obtain a dielectric Constance close to a vacuum, IsoTek has created a Virtual Air Dielectric offering just 1.0548 dielectric Constance. This air barrier is achieved by minimal conductor contact and the use of an FEP (Teflon) bridge.

Optional DC can be installed

Specifications

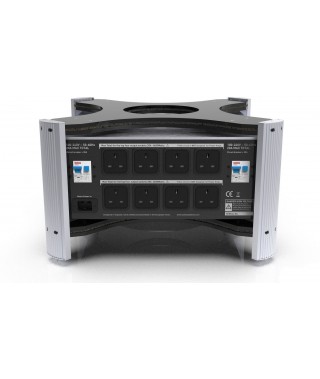

Number of outlets 8

Type of outlets UK, EU, US, CH, AU, ZA

Mains inlet 10A IEC C19

Mains voltage 100-240V / 50-60Hz

Medium current 2,300W

Total Wattage 2,300W

Transient power 14,720W

Surge protection 100,000 Amp per outlet

Dimensions 500 x 300 x 500mm (W x H x D)

Weight 45kg
