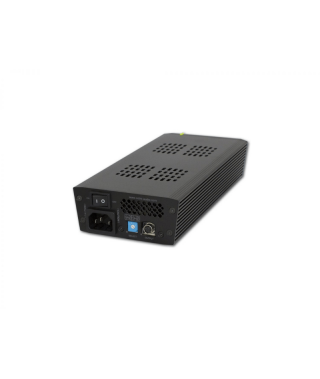

SOtM sPS-500 Power Supply

The resolution, textures, transparency and expression of sound is greatly affected by how and what power is supplied to your audio devices. Which means a power supply unit affects the sound quality to the entire audio system, and should never be considered “just a power supply unit.”

The sPS-500 is an audio power supply designed specifically for high performance audio. It is built to eliminate noise generated by powered devices as well as to remove noise coming from an AC power source.

Using SOtM’s unique technologies for noise cancellation and sound enhancement, and high quality audio components that are already proven in sound quality, you will hear superior sound with the well-designed sPS-500.

The sPS-500 can easily cope with a wide range of AC power input – the output voltage can change to 7Vdc, 9Vdc, 12Vdc or 19Vdc depending on the power specification of your audio equipment – and the 50W output is flexible enough to be applied to various audio systems. It is also designed to provide more stable power through the input, output, overcurrent and overheat protection circuits.

The rich texture and detailed, luxurious sound created with the technology of the new sPS-500 will create a new listening experience with your audio system. A unique and impressive exterior design also makes the sPS-500 stand out from the crowd. The sPS-500 will help bring your audio system up to the next level.

Features

7Vdc, 9Vdc, 12Vdc, 19Vdc selectable output voltage

Eliminate noise generated by powered devices

50W output power for NAS, fanless audio PCs and others

Support worldwide AC input voltage

Output short, over temperature protection

Specifications

User interface

DC output on/off switch

Operating indicator LED x1

AC power input on/off switch(Rear panel)

AC power input

Voltage : 100Vac ~240Vac

Frequency : 50Hz / 60Hz

Current : 2.5A >

DC power output

Voltage : 7Vdc, 9Vdc, 12Vdc, 19Vdc selectable

Voltage tolerance: ±10%

Current limit:

5A@ 7Vdc, 9Vdc, 12Vdc

3.3A@ 19Vdc

Current tolerance: ±10%

Maximum output power :

50W@100Vac <, +50℃ > inside temperature

Protection

Output short

Over temperature

Operating environment

Operating temperature : +10 ~ +30℃

Storage temperature : 0 ~ +40℃

Operating & storage humidity : 10% ~ 90%

Dimension

106 x 48 x 230(mm)

Weight

2Kg >
