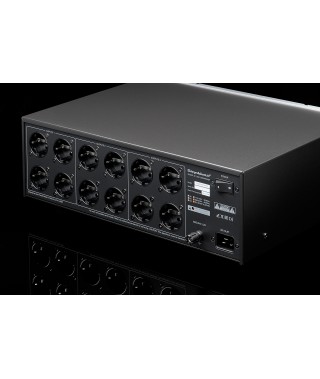

GigaWatt POWERCONTROL Power Filter

PowerControl conditioner is an extension of the concept used in PowerPrime.

This model also uses the solutions known from the higher PC series power conditioners. The device is equipped with 12 outlets, making it comparable in functionality to the flagship PC-4 EVO+. The standard equipment includes voltage display with switch, and DC Blocker. Like all GigaWatt power conditioners, the PowerControl is available with front panels in black and silver.

Features

Twelve high quality, silver plated proprietary power outlets to keep ZERO contact resistance

New LED Voltmeter display, with switch OFF button. White colour as a standard, 9 custom colors on request (extra charge)

Compact chassis depth to reduce footprint in space restricted applications

Anti-vibration, GigaWatt aluminum feet with softpads to absorb vibrations

Top cover damped with a bitumen-polymer composite mat

Ground/Polarity fault detection indicator, to avoid wrong polarity or faulty grounding of the unit

Filtering architecture with special GigaWatt Audio Grade EMI Suppression Capacitors to keep ultimate filtering performance

Massive, outlets distribution rails, 30 QMM polished copper (OFHC 10100, 99.995%) to keep stable power distribution for outlets in star connection topology

Internal wiring – OFC 4,0 QMM by GigaWatt Powerlink to keep ultimate conductor transmission

Dual layer PCB, silver-plated copper with ultra wide traces to reduce power losses

RLC type filtering block with HF (High Flux) core filter to allow maximum interference damping

Ultimate Surge protection based on plasma spark-gaps and UltraMOV varistors

DC Offset Blocker on board to eliminate unwanted DC component of the power grid

Advanced switch from Carling Technologies to allow no compromise switching

Internal electric construction to allow load up to 100A peak

Non-magnetic screws, at points of current flow, to avoid degradation of the electric field

Enhanced buffer circuit with GigaWatt Audio Grade compensation battery for power factor improve and for maximum impulse response

Special internal sandwich base to prevent the transmission of resonant vibrations from the chassis to the filter elements

Internal elastomer Shock dampers that prevents transmission of external vibrations to filter elements

IEC C20 inlet allowing for better contact and power flow

Ground lug for turntables, cables (ect) additional earthing

Specifications

Line voltage: 220-240 VAC 50/60 Hz, 110-120 VAC 50/60 Hz

Maximum output power : 3 680 W

Maximum current load: 16 A

Absorbed impulse current: 13 000 A

Dimensions:  440 x 310 x 165 mm

Gross weight: 15,7 kg (with cable)
