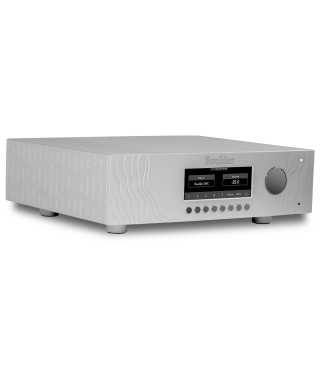

Boulder 1110 Preamplifier

What is it that makes the 1110 Stereo preamplifier so special? It is rare, an overachiever, a unique combination of reference-level performance and compact, convenient design. It is at once familiar in size and shape and yet completely new in aesthetic design detail. Perhaps what makes it so special is that it takes such amazing sight, sound, use, and feel and packs them all into a single chassis. It is the perfect mix of traditional function and cutting-edge technology, earning more than 10 international product awards from media worldwide.

Boulder 1110 Preamplifier

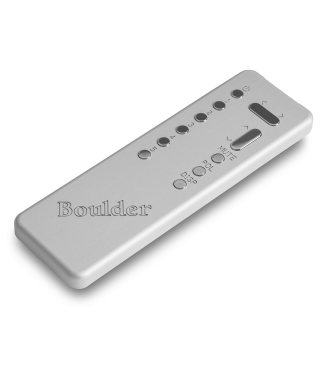

Like the 1160 power amplifier, the 1110 preamp is a classic case of a “form follows function” design. Its appearance includes clean and lightly sculptured metalwork, minimal front panel controls, and a clean and highly readable front panel display. For all its technical advances, the Boulder 1110 is also very straightforward in function. It only has XLR inputs and outputs and basic control features on the front panel and remote. (The 1110’s manual remote is a small attractive unit with input, volume, balance, and polarity controls.)

It is, after all, a Boulder, and every Boulder is special.

Specifications

STEREO PREAMPLIFIER

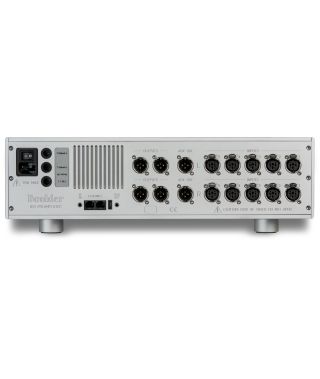

INPUT CONNECTIONS

5 pairs balanced line level

OUTPUT CONNECTIONS

2 pairs balanced main, 1 pair balanced auxiliary

VOLUME

100 dB range in 0.5 dB steps (200 steps) or 1.0 dB steps (100 steps)

MAXIMUM INPUT LEVEL

6.0 Vrms

MAXIMUM OUTPUT LEVEL

14.0 Vrms

THD+N, 2V OUTPUT, 20 HZ – 20 kHz

0.0015% (-96.5 dB)

OUTPUT LOADED WITH 150 OHMS

Less than 1 dB distortion change, 20 – 10 kHz

MAXIMUM VOLTAGE GAIN

20 dB

AUXILIARY PATH GAIN, BALANCED OUTPUT

8.5 dB balanced

2.5 dB unbalanced

FREQUENCY RESPONSE, 20 HZ – 20 kHz

+0.00, -0.03 dB

FREQUENCY RESPONSE, -3 DB AT

0.02 Hz and 250 kHz

CLIP TO NOISE RATIO

118 dB

CROSSTALK, L TO R OR R TO L

-101 dB or better, 20 Hz to 20 kHz

CROSSTALK, ADJACENT INPUTS

-115 dB or better, 20 Hz to 20 kHz

INPUT IMPEDANCE

100k ohms, balanced

50k ohms, unbalanced

OUTPUT IMPEDANCE

100 ohms, balanced

50 ohms, unbalanced

CONTROL SYSTEM

IP (Ethernet), IR, Boulder Net

WEIGHT

36 lbs. (16.3 kg),

Shipping: 49 lbs. (22.2 kg)

POWER REQUIREMENTS

100, 120, 220-240 VAC, 50-60 Hz

POWER CONSUMPTION

75W maximum
