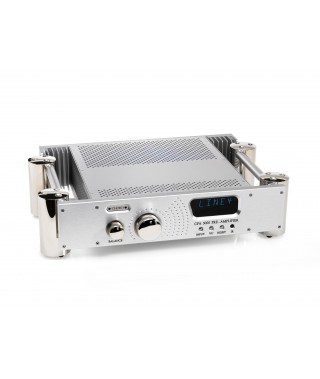

Chord CPA 3000 Seven Input Signature Preamplifier

The CPA 3000 Seven Input Signature Preamplifieralso retains the record output facility shared with the CPA 2500: a single tape loop is available for playback and also to record from any of the connected sources. The CPA 3000 also benefits from features such as our proprietary high-frequency switch-mode power supply and ultra-low-noise circuitry, to give the very best noise floor performance.

As with all of our preamps, front panel controls allow for easy input and output selection and a remote control offers further flexibility. The fascia features a large easy-to-read vacuum fluorescent display and on the CPA 3000 Seven Input Signature Preamplifier, signal-detection indicators have been replaced with highly accurate VU meters giving both clear signal detection and accurate input level.

Further features include a precision motorised Alps potentiometer for the volume control, fully balanced A/V bypass circuitry for the direct connection to A/V processors from stereo mode and 12V remote triggering outputs at the rear of the unit, to activate power amplifiers or A/V processors on power-up.

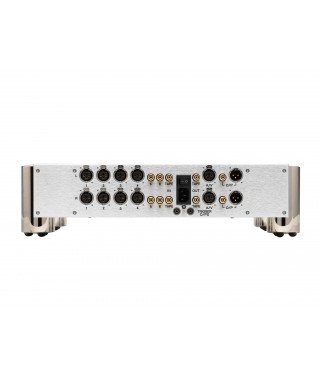

Inputs & Outputs

7 Stereo Inputs and 3 Stereo Outputs

3x Stereo Unbalanced RCA Inputs – Line In 5, Line In 6, and Tape 1

4x Stereo Balanced XLR Inputs – Line In 1, Line In 2, Line In 3, and Line In 4

1x Stereo Balanced XLR Output

2x Stereo Unbalanced RCA Output

1x Stereo Balanced XLR AV Bypass Inputs

Features

HF Switch Mode Power Supply

Blue Velvet ALPS Potentiometer

-93dB Signal to Noise Ratio

Fully Balanced Circuitry

Analogue Signal Path

Input/Output Buffering

3x Stereo RCA Inputs

4x Stereo XLR Inputs

2x Stereo RCA Outputs

1x Stereo XLR Output

Convection Cooled

12v Trigger On/Off Input/Output

Solid Aluminium Chassis

Specifications

Frequency Range: 2.5Hz – 200kHz +/- 3dB

Total Harmonic Distortion: 0.002% 20Hz – 20kHz

Intermodulation Distortion: -100dB on all inputs

Signal to Noise Ratio: -93dB on all inputs

Channel Separation: 10Hz @ 90dB, 1kHz @ 90dB, 10kHz @ 90dB, 20kHz @ 85dB

Channel Balance: 0.01dB

Input Max Voltage: 10v RMS Balanced – 5v RMS Unbalanced

Output Max Voltage: 15v RMS Balanced – 5v RMS Unbalanced

Output Offset: 0mV (Both Channels)

Potentiometer Performance: 0dB 0.5dB, -20dB 0.2dB, -60dB 0.24dB (13seconds Full Travel)

Nominal Gain: Fixed at x 1.1

Input Impedance: 94 kΩ Balanced – 75 kΩ Unbalanced

Output Impedance: 100Ω (Short Circuit Protected)

Operating Voltage: 85v – 270v AC (50Hz – 60Hz) Auto Switching

Dimensions Without Integra Legs: 420mm (w) x 355mm (d) x 88mm (h)

Dimensions With Included Integra Legs: 480mm (w) x 355mm (d) x 128mm (h)

Weight: 10kG
