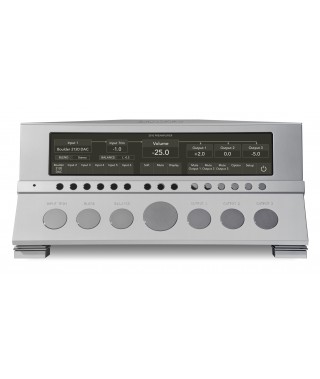

Boulder 3010 Preamplifier

The 3000 Series and thus the Boulder 3010 Preamplifier have become synonymous with the ultimate in sound quality; a level of performance reserved for only the finest audio systems in the world. But traditional thought says that the more features and functions added to a preamplifier, the more of an affect they have on sound, right?

In the 3010 Boulder’s engineers have proven traditional wisdom wrong and achieved something monumental. The 3010 is easily the greatest performing preamplifier in the history of the company. It’s also the most flexible preamp we’ve ever designed. Which very likely makes it the finest preamplifier available.

Features

Matched, dual-phase 993SD gain stage improves thermal tracking and optimizes ground

Variable Blend control allows recordings with hard-panned images or mono LPs played with stereo cartridges to create a stable center image

Ethernet connection downloads future software updates and connects to IP-based home control systems

Three balanced outputs can be operated independently for multiple zones or together for bi- or tri-amplification

Boulder's own fully-balanced volume control significantly reduces distortion and step noise

Programmable Soft mode temporarily reduces output to levels suitable for conversation

Independent, real-time controls to adjust gain on all active inputs and outputs

Separate enclosures for left and right analog sections keep all control and power circuitry from affecting sound

Large, full-color, 14.9-inch (38 cm) LCD display clearly indicates all controls, settings, and audio paths

Network browser control of all preamplifier functions

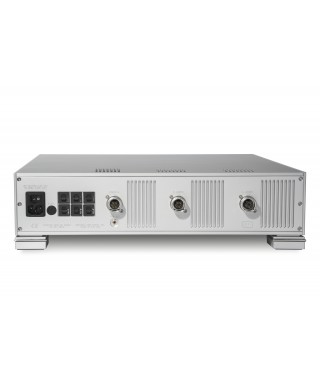

Separate power supply chassis with individual supplies for left channel, right channel, preamp control, and low-power Standby mode

HTML page to program setup preferences, input and output options, and custom input and output names

Programmable Theater Mode enables seamless use in home cinema systems

OpenHome compatibility for use in network controlled and distributed home A/V systems

Low power consumption Standby mode is compatible with all energy efficiency requirements

Specifications

BALANCED INPUTS

6 via 3-pin XLR

BALANCED OUTPUTS, DUAL

3 via 3-pin XLR

AUXILIARY BALANCED OUTPUT

1 via 3-pin XLR

MAXIMUM INPUT LEVEL

7 Vrms

MAXIMUM OUTPUT LEVEL

28 Vrms

THD+N, 2V OUTPUT, 20 HZ TO 5 KHZ

0.0008% (-102 dB)

THD+N, 2V OUTPUT AT 20 KHZ

0.001% (-100 dB)

MAXIMUM VOLTAGE GAIN

20 dB

VOLUME RANGE

100 dB

VOLUME STEPS

0.1, 0.5, 1.0 dB ± 0.01 dB

AUXILIARY PATH GAIN

-1 dB

FREQUENCY RESPONSE, 20 HZ TO 5 KHZ

+0.00, -0.03 dB

FREQUENCY RESPONSE, -3 DB

0.02 Hz & 300 kHz

INPUT IMPEDANCE

333kΩ, Balanced

OUTPUT IMPEDANCE

100Ω, Balanced

POWER REQUIREMENTS

90-120V / 200-240V, 50 - 60 Hz

POWER CONSUMPTION

240W Maximum

PREAMPLIFIER CHASSIS DIMENSIONS

19” (48.25 cm) W x 18” (45.75 cm) D x 9.25” (23.5 cm) H

PREAMPLIFIER CHASSIS WEIGHT

78 lbs. (35.4 kg)

POWER SUPPLY CHASSIS DIMENSIONS

19” (48.25 cm) W x 18” (45.75 cm) D x 5.1” (13 cm) H

POWER SUPPLY CHASSIS WEIGHT

45 lbs. (20.4 kg)

SHIPPING DIMENSIONS

27” (68.6 cm) W x 33” (83.8 cm) D x 26” (66.1 cm) H

SHIPPING WEIGHT

235 lbs. (106.6 kg)
