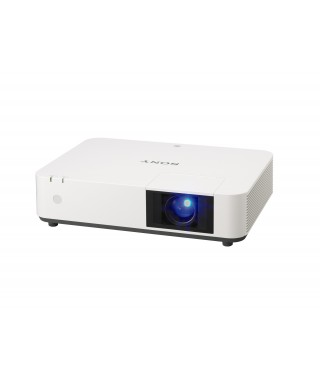

Sony VPL-PHZ12 WUXGA Laser Light Source Projector

Sony VPL-PHZ12 Laser Projector

The all new Sony VPL-PHZ12 Laser Projector is feature packed offering WUXGA resolution with 5,000 ANSI lumens brightness, excellent picture quality and attractive running costs. This stylish VPLPHZ12 3LCD laser projector from AV Mart Australia is the perfect solution for anyone looking for a business projector, for corporate use and even more popular now, as a home projector. The slim, stylish body features a flat top surface that blends discreetly into any space when the projector is ceiling mounted.

Outstanding brightness, colour and contrast

The advanced laser light source inside the VPL- PHZ12 is combined with powerful signal processing to ensure exceptional images with high 5,000 lumen brightness, ∞:1 contrast and beautifully stable, accurate colour.

Impressive refinement

Images look truer and sharper with Reality Creation that optimises every pixel to enhance on-screen images and text without adding digital picture noise. Contrast Enhancer analyses and refines dark and light areas in the image for sparkling highlights and rich, deep blacks.

Faster, fuss-free set-up

Save time with Intelligent Setting presets that instantly fine-tune brightness, cooling, colour and other projector settings for great pictures in any environment.

Seamless networked AV integration

Integration’s easy in today’s AV environments. The VPL-PHZ12 from AV Mart Australia partners brilliantly with leading networked control, monitoring and management systems such as Crestron Connected™ and Extron® XTP™ Systems.*

*Extron and XTP Systems are trademarks of RGB Systems Inc.

Features

Very low maintenance

The laser light source offers up to 20,000 hours* operation without lamp exchange, reducing maintenance needs compared with traditional projectors.

* Depending on usage environment

Consistent brightness

Experience consistent image brightness throughout the laser light source’s 20,000 hours recommended lifespan.

Optical lens shift

Enjoy easy installation and greater flexibility with lens shift to position the projector in higher spaces.

Easy filter cleaning

Focus on great-looking images instead of arduous maintenance. The automated filter cleaning system removes dust every 100 hours.

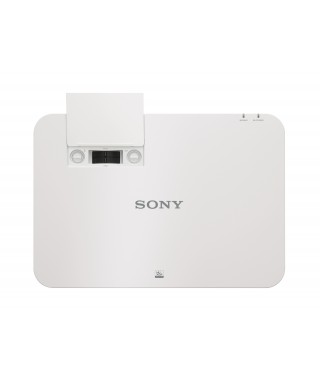

Stylish blend-in design

The slim, stylish body features a flat top surface that blends discreetly into any space when the projector is ceiling mounted.

Specifications

Display System

Display System 3 LCD system

Display Device

Size of Effective Display Area 0.76” (19.3 mm) x 3 BrightEra LCD Panel, Aspect ratio: 16:10

Number of Pixels 6,912,000 (1920 x 1200 x 3) pixels

Projection Lens

Focus Manual

Zoom - Powered / Manual Manual

Zoom - Ratio Approx. x 1.45

Throw Ratio 1.28:1 to 1.88:1

Lens Shift - Powered / Manual Manual

Lens Shift - Range Vertical +20% to +55%

Lens Shift - Range Horizontal +/- 10%

Light Source

Type Laser diode

Filter Cleaning / Replacement Cycle (Max.) 20,000 H (service maintenance)

Screen Size

Screen Size 40" to 300" (1.02 m to 7.62 m)

Light Output *1

Mode: Standard 5,000 lm *2

Mode: Standard (Centre) 5,200 lm *3

Mode: Middle 4,000 lm

Mode: Low 3,000 lm

Color Light Output *1

Mode: Standard 5,000 lm

Mode: Middle 4,000 lm

Mode: Low 3,000 lm

Contrast Ratio (full white / full black) *1

Contrast Ratio (full white / full black) ∞:1

Speaker

Speaker 16 W (monaural)

Displayable Scanning Frequency

Horizontal 15 kHz to 92 kHz

Vertical 48 Hz to 92 Hz

Accepted Signal Resolution

Computer Signal Input Maximum signal resolution: 1920 x 1200 *4

Video Signal Input NTSC, PAL, SECAM, 480/60p, 576/50i, 720/60p, 720/50p, 1080/60i, 1080/50i

The following items are available for HDMI input only; 1080/60p, 1080/50p, 1080/24p

Color System

Color System NTSC3.58, PAL, SECAM, NTSC4.43, PAL-M, PAL-N, PAL60

Keystone Correction (Max.)

Horizontal +/- 30 degrees

Vertical +/- 20 degrees

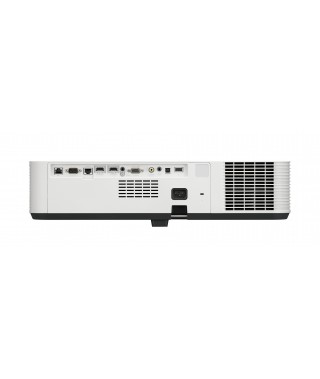

INPUT OUTPUT (Computer/Video/Audio/Control)

INPUT A RGB / Y PB PR input connector:Mini D-sub 15 pin (female)

Audio input connector: Stereo mini jack

INPUT B HDMI input connector: HDMI 19-pin, HDCP support

Audio input connector: HDMI audio support

INPUT C HDMI input connector: HDMI 19-pin, HDCP support

Audio input connector: HDMI audio support

INPUT D HDBaseT interface connector: RJ45, 4 play (Video, Audio, LAN, Control)

VIDEO IN Video input connector: Phono Jack

Audio input connector: Shared with INPUT A

OUTPUT Audio output connector: Stereo mini jack

REMOTE D-sub 9-pin (male) / RS232C

LAN RJ45, 10BASE-T/100BASE-TX

USB TYPE-A

USB TYPE-B

Acoustic Noise *1

Lamp Mode: Standard / Middle / Low 36 dB / 28 dB / 25 dB

Operating Temperature / Operating Humidity

Operating Temperature / Operating Humidity 0°to 40°C (32°F to 104°F) / 20 % to 80 % (no condensation)

Storage Temperature / Storage Humidity

Storage Temperature / Storage Humidity -10° to +60°C (14°F to 140°F) / 20 % to 80 % (no condensation)

Power Requirements

Power Requirements AC 100 V to 240 V, 4.3 A to 1.7 A, 50 Hz / 60 Hz

Power Consumption

AC 100 V to 120 V Mode: Standard: 424 W

AC 220 V to 240 V Mode: Standard: 403 W

Power Consumption (Standby Mode)

AC 100 V to 120 V 0.5 W (when "Standby mode" is set to "Low")

AC 220 V to 240 V 0.5 W (when "Standby mode" is set to "Low")

Power Consumption (Networked Standby Mode)

AC 100 V to 120 V 12.5 W (LAN)

13.2 W (optional WLAN module)

16.8 W (HDBaseT)

17.4 W (ALL Terminals and Networks Connected, when "Standby Mode" is set to "Standard")

AC 220 V to 240 V 11.9W (LAN)

12.6W (optional WLAN module)

17.0W (HDBaseT)

17.6W (ALL Terminals and Networks Connected, when "Standby Mode" is set to "Standard")

Standby Mode / Networked Standby Mode Activated

Standby Mode / Networked Standby Mode Activated Approx. 2 Minutes

Heat Dissipation

AC 100 V to 120 V 1446 BTU/h

AC 220 V to 240 V 1374 BTU/h

Dimensions (W x H x D)

Dimensions (W x H x D) (without protrusions) 510 x 113 x 354.6 mm (20 3/32 x 4 7/16 x 13 31/32 inches)

Mass

Mass Approx. 8.7kg (19 lb)

*1

The figures are approximate. They vary depending on the environment or how the projector is used.

*2

The value is in accordance with ISO 21118, and may differ depending on the actual unit. Brightness and contrast vary depending on use conditions and environments.

*3

The value is light output measured at center area of screen in Standard mode, and average of all products shipped.

*4

Available for VESA Reduced Blanking signal.
