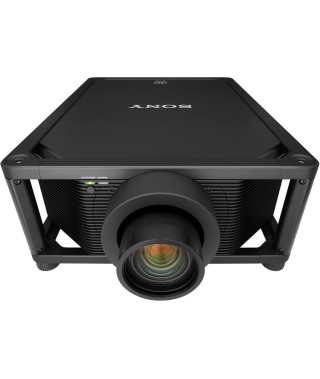

Sony VPL-VW5000ES 4K Laser Projector

Crisply detailed native 4K images (4096 x 2160) offer four times the resolution of Full HD, pulling you right into the heart of the action with unprecedented clarity. You’ll experience fabulously rich cinematic colours, smooth motion and spectacular contrast.

Extremely powerful 5000 lumen brightness ensures wonderfully clear and sharp big-screen pictures, even in well-lit rooms. As well as spectacular picture quality and reliability, you’ll enjoy reduced operating costs compared with conventional projection systems, plus less worry of lamp failure half way through the show. With flexible installation, simple setup, fuss-free auto calibration and low-noise operation, the VPL-VW5000ES 4K Home Cinema Projector puts you in control of the ultimate entertainment experience.

Features

Cinematic 4K clarity with four times the detail of Full HD

Very high brightness and contrast

Long-lasting laser light source

HDR compatible

Reality Creation upscales movies to 4K

Compatible with ‘Mastered in 4K’ Blu-ray™ Discs

Industry standard RF 3D compatible

What’s In The Box

Standard Lens (VPLL-Z7013)

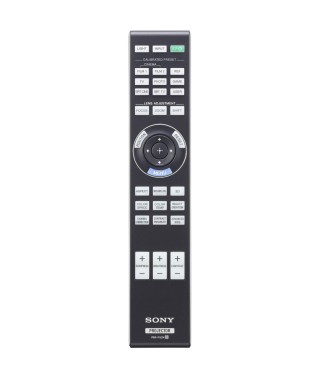

Remote Control (RM-PJ24)

Batteries (Size AA (R6) Manganese (2))

AC Power Cord

Operating Instructions (CD-ROM)

Quick Reference Manual

Active 3D Glasses – TDG-PJ1 (Optional)

Short Throw Lens – VPLL-Z7008 (Optional)

Specifications

Image Display

Display System 3-Chip 0.74" SXRD LCoS

Native Chip Resolution 4096 x 2160 (DCI 4K)

Maximum Brightness White: 5000 Lumens

Color: 5000 Lumens

Aspect Ratio Native: 17:9

DLP Link 3D Yes

Supported 3D Formats Frame Packing (up to 1080p)

Side by Side (up to 1080p)

Top Bottom (up to 1080p)

Lens

Focus Manual Powered

Lens f/2.9 - 3.9

Lens Shift Vertical: ± 80%

Horizontal: ± 31%

Optical Zoom Powered: 2.06x

Throw Ratio 1.27 to 2.73:1

Projection Size 60 - 300" / 152.40 - 762.00 cm

Features

Supported HDR Input Formats HDR10, Hybrid Log Gamma

Ceiling Mountable Yes

Rear Screen Projection Yes

Input/Output Connectors

Inputs/Outputs 2 x HDMI (HDMI Type-A) Audio, Video Input

1 x Ethernet (RJ45) LAN

2 x 12 V Trigger Control Output

1 x 1/8" / 3.5 mm Mini Control Input

1 x 1/8" / 3.5 mm Mini Control Output

1 x RS-232 (DE-9/DB-9) Control Input

1 x USB 2.0 (USB Type-A) Service Input

HDCP Support Version 2.2

General

Light Source Laser Phosphor

Expected Lamp Life Low Brightness: 20,000 Hours

Fan Noise Full Brightness: 35 dB

Low Brightness: 30 dB

AC Input Power 100 to 240 VAC, 50 / 60 Hz

Power Consumption Full Brightness: < 1200 W

Standby Mode (Lamp Off): 0.5 W

Operating Temperature 41 to 104°F / 5 to 40°C

Storage Temperature 14 to 140°F / -10 to 60°C

Operating Humidity 20 to 80%

Storage Humidity 20 to 80%

Dimensions (W x H x D) 21.7 x 9.0 x 29.5" / 550.0 x 228.0 x 750.0 mm

Packaging Info

Package Weight 118.9 lb (43kg)

Box Dimensions (LxWxH) 38.5 x 25.7 x 16"
