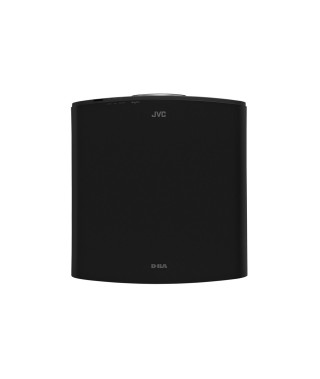

JVC DLA-NZ700 4K Laser Projector

The JVC DLA-NZ700 sets a new standard for home cinema projection, delivering native 4K resolution (4096 x 2160) with JVC’s state-of-the-art BLU-Escent Laser Light Source. Boasting a stunning 2,500 lumens of brightness and a native contrast ratio of 40,000:1, the DLA-NZ700 produces lifelike images with unparalleled clarity, vibrant colours, and deep, dynamic blacks.

All Components Redesigned

The optical unit, lens, and circuit board have all been redesigned to achieve the world’s smallest native 4K projector.

Volume Reduction

The DLA-NZ700 has a dimension reduction of 35% compared to the previous DLA-NZ7/RS2100, while still incorporating a laser light source and native 4K D-ILA device.

Re-design of Air Intake and Exhaust

By placing the heat source exhaust at the rear, the potential impact of the image on the projection screen has been eliminated. This provides more flexibility for installation.

Environmental Considerations

The design of the new projector models use significantly less plastic, which also reduces transportation costs. This leads to a product that is much more environmentally friendly.

Native 4K

Third-generation 0.69 inch native 4K D-ILA device enhances video quality

Our proprietary 0.69inch native 4K D-ILA device has been advanced to the third generation to further enhance black details.

High native contrast

The DLA-NZ700 achieves 80,000:1 native contrast by simultaneously improving alignment control and pixel flatness.

Uniform brightness

The Manufacturing process has improved uniformity of brightness across the entire screen, with beautiful image quality to every corner.

High Brightness and Long life

JVC’s proprietary laser light source technology, Blu-Escent, uses a blue laser diode as the light source. The DLA-NZ700 achieves a high brightness of 2,300lm and the DLA-NZ500 2,000lm. Both models have a laser life expectancy of approximately 20,000 hours.

Improved Power Efficiency

The DLA-NZ700/NZ500’s brightness per watt of effective power is approximately 2 times that of the first model equipped with BLU-Escent Laser (the DLA-Z1 was released in January 2017, with a brightness of 3,000lm).

Controlling the Luminance in 101 Steps

BLU-Escent Laser can finely adjust the luminance according to the environment and preference using the Light Source Control by slider adjustment. There are a total of 101 (0 – 100) luminance control steps that can be used to make fine adjustments to match the target luminance in the environment and on the screen.

Superior Resolution

Newly designed large aperture (80mm, 11groups, 15lenses) 4K compatible lens delivers full native 4K D-ILA resolution to every corner of the screen.

Installation flexibility

Fully electric (Zoom, Focus, Shift), with 70% vertical and 28% horizontal shifts for easy installation.

HDR Drastically Improves Expressive Power of Images

When it comes to reproducing the rich video information of HDR content, including the extended brightness range, BT.2020 wide colour gamut and 10-bit gradation, rely on the new D-ILA projectors. Both models support all HDR formats including HDR10 for Blu-ray and streaming, HLG for broadcasting, and the HDR10+ with dynamic metadata compatibility. The projectors’ improvements for higher brightness and contrast have helped to achieve a wider dynamic range, allowing users to enjoy an immersive experience with HDR images full of reality.

DML (Display Mastering Luminance) for Better HDR Experience

DML (Max Display Mastering Luminance) metadata, which represents the nit level of the professional monitor used to grade the movie to the director’s standards, is used to set the dynamic range of the title for improved HDR tone mapping. On the DLA-NZ700 series, both DML and MaxCLL values are used for the HDR levels.

HDR10+ described

In HDR10, the basic standard for reproducing HDR content, there are only two pieces of information: MaxCLL, which represents the maximum brightness of the content, and MaxFALL, which represents the average maximum brightness. However with HDR10+, the luminance information for each scene is embedded in the content as metadata, which allows for scene-specific tone mapping and faithfully reproduces the HDR image intended by the creator.

Gen2 Frame Adapt HDR Function for Brighter and More Colourful HDR Images

The Frame Adapt HDR function, which uses a proprietary algorithm to instantaneously analyse the maximum brightness of any HDR10 content per scene or per frame and perform real-time tone mapping to optimal dynamic range for video projection, has evolved into the second generation (Gen2). The algorithm for tone mapping has been fully reexamined to achieve HDR images with higher definition. Furthermore, the proprietary algorithm for tone curve selection has also been improved to reproduce HDR images that are brighter, more colourful and have a wider dynamic range.

Deeper Blacks for Richer Gradation

The new Deep Black Tone Control has been added to Frame Adapt HDR, with a new algorithm to further subdue tones in dark areas to achieve more realistic darkness. This function maximises the dynamic range of the new-generation 4K D-ILA devices and delivers images with more contrast than ever before. Scenes with light and dark shades such as nightscapes can be projected with greater realism.

JVC Advanced Technology

Cinema filters richly reproduce colourful images with a wide colour gamut equivalent of DCI-P3

The CINEMA FILTER enables the wide colour gamut of of DCI-P3 film standards. HDR content typified by UHD Blu-ray, which has a much wider colour gamut, can be richly depicted with gradations of the sky and sea, contrasting crimson roses and rows of fresh green trees.

Equipped with Vivid picture mode that reproduces SDR content in rich colours

Vivid picture mode is a standard dynamic range (SDR) picture mode that reproduces content in rich colours. You can enjoy popular SDR video content, such as animation, in bright, rich colours and clear images.

Proof of high-grade, high-quality projectors licensed with ISF Certifications

All models are licensed with the ISF C3 (Certified Calibration Controls) mode, enabling trained dealers to professionally calibrate them to desired screen surfaces, lighting environments and video sources, and then securely store these precise settings into the projector.

6-axis colour Management System

A 6-axis matrix of red, green, blue, cyan, magenta, and yellow enables the precise adjustment of hue, saturation, and intensity. Users can make adjustments suitable for the content as the projector allows precise management of colours.

Auto Calibration function

Using an optical sensor and proprietary software*2, optimum calibration can be applied in just a few easy steps to match the changes in optical characteristics caused by the installation situation of the projector. Auto-Calibration optimises all essential elements found in the image, including colour balance, gamma characteristics, colour space, and colour tracking. In the past, multiple calibrations were required, but now it’s possible to complete the calibration with a single calibration.

*2: An optical sensor and proprietary software, which is downloadable from JVC website, are required to perform auto calibration function. Refer to the JVC website for details.

Installation Mode

These projectors are equipped with Installation Mode that allows users to centrally manage settings related to installation in order to enjoy projected video optimized for each environment. As shown in the graphical interface, eight settings for Lens Control, Pixel Adjustment, Mask, Anamorphic on or off, Screen Setting, Installation Style, Keystone, and Aspect can be adjusted. Additionally, 5 different mode settings can be stored in memory and named as desired. Installation modes stored in memory for various environments can be called up immediately.

Screen Adjustment Mode

Screen Adjustment Mode is one of the nine Installation Modes described above. When the user selects a setting that best suits the screen being used from the Screen Adjustment Mode settings, the projector adjusts the image with natural colour balance to match the screen. The mode is compatible with the latest models offered by the world’s major screen manufacturers.

Digital Keystone Function*

These projectors feature Digital Keystone Function. Digital Keystone adjusts keystone distortion that occurs when the projector is placed in a tilted position.

* : Digital Keystone Function cannot be used simultaneously. Keystone adjustment corrects only in the vertical direction.

Anamorphic mode for wide cinematic films

A 2.35:1 aspect ratio for wide cinematic films can be enjoyed by combining the projector with a third-party anamorphic lens to create dynamic picture reproduction just as can be seen in a movie theatre.

USB Back-up

The USB Back-up function can save and write settings on the main unit menu to a third-party USB flash drive all at once. It is important to save adjustments made by an installer or specialist, or to undo unintended adjustments made by children or family members.

Specifications

Overview

Colour

Black

Maximum Screen Size

200"

Remote Control Types:

Infra Red

Projector Technology

DILA

Remote Control Included:

Yes

Screen

Screen Resolution:

4K Ultra HD

Aspect Ratio:

16:9

Picture Quality

Pixel Resolution:

4096 x 2160

Contrast Ratio:

80, 000:1

HDR Formats:

HDR10, HDR10+, HLG

Lens Shift:

Yes

Throw Ratio:

1.34 - 2.14

Lumens:

2300 LUMEN

Connectivity

Number of USB Ports:

1

TV / Projector Outputs:

Bluetooth, eARC

USB Function:

Service

HDMI Type:

2 x HDMI 2.3

Wireless Connectivity:

Bluetooth, Wi-Fi Built In

Guarantee

Richer Sounds extended guarantee:

6 Year Projector Guarantee - Free

Manufacturer's guarantee:

3 Years

General

Processor:

Quad Core

Max Fan Noise:

23 dB

Dimensions

Box Dimensions (mm):

width: 585, height: 361, depth: 600

Product Dimensions (mm):

D 479 x H 180 x W 450

Weight

Weight (kg):

14.8

Features

3D:

Yes

Energy Consumption

Power Consumption - Standby:

0.3W

Power Consumption - Normal Use:

280W
