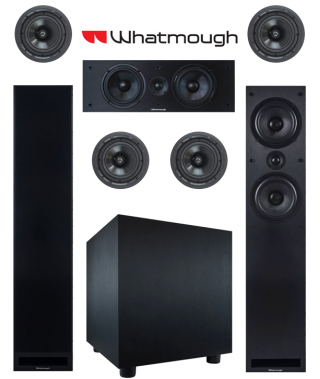

Whatmough Emotion Two 5.1.2 Speaker Pack

System Includes

Whatmough Emotion 2 Floor Standing Tower Speakers (Pair)

Whatmough Emotion Centre Channel Speaker

Whatmough Emotion 8″ In-Ceiling Speakers (Pair)

Whatmough Emotion 8″ In-Ceiling Speakers (Pair)

Whatmough Emotion 12″ 300W Subwoofer

Specifications

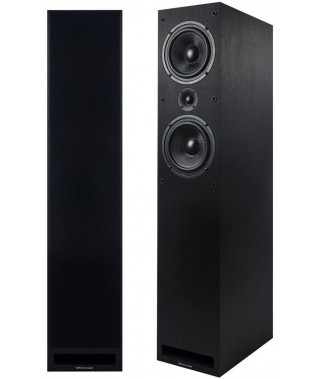

Whatmough Emotion 2 Floor Standing Tower Speakers (Pair)

Model WEFS550

Configuration 2-way

Vented box

1 x 1” Soft Dome Tweeter

2 x 6.5” Bass/Mid

Nominal Impedance 6 Ω

Recommended Amplifier Power 30-160W into 8Ω

Power Handling 80W RMS

150W Peak Power

Efficiency 89dB spl (2.83Vrms, 1m)

Frequency Response 38Hz ~ 25 KHz ± 3dB

Dimensions H x W x D (mm) 990*205*320

Weight (kg) 20.6 kgs

Finish Black

Warranty 5 years for driver

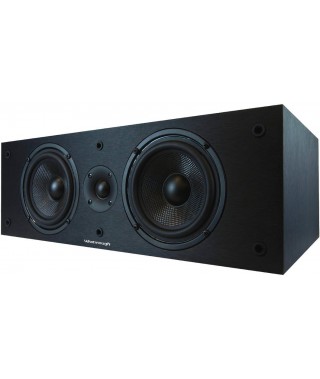

Whatmough Emotion Centre Channel Speaker

Model WEC2525

Configuration 2-way

Sealed enclosure

1 x 1” soft dome tweeter

2 x 6.5” bass/mid

Nominal Impedance 6 Ω

Recommended Amplifier Power 30 – 150W into 8 Ω

80W RMS

150W peak power

Efficiency 89dB spl (2.83Vrms, 1m)

Frequency Response 70Hz ~ 25 KHz  ±3dB

Dimensions H x W x D (mm) 205*560*300

Weight (kg)

Finish Black

Warranty 5 years for driver

Whatmough Emotion 8″ In-Ceiling Speaker

Model WEIC180

Configuration 1 x 1” soft dome tweeter

1 x 8” bass/mid

12 dB x-over

Nominal Impedance 8 Ω (min.6.4 Ω)

Power Handling 30W RMS

50W Peak Power

Efficiency 87dB spl (2.83Vrms, 1m)

Frequency Response 49Hz ~ 20KHz ±3dB

Dimensions (mm) Ø281*103H

Weight (kg) 1.72 kgs

Finish White (Paintable)

Warranty 3 years

Whatmough Emotion 12″ 300W Subwoofer

Model WWESUB12

Configuration Down-firing

Sealed enclosure

1 x 12” woofer driver

Enclosure Active Bass Reflex enclosure

300W rms @ 4 Ω

Class D Amplifier

Low distortion <0.1% at rated power

High efficiency

Signal Noise Rate: >90dB (A-weighted)

Amplifier Low-pass filter: 40~120Hz

Phase Adjustment: 0~180°

Auto sense on/stand-by

DSP for filter and equalisation

Dynamic range compression

Bass Extension -6dB at 21 Hz

Frequency Response 25Hz – 40/120Hz adjustable ± 3dB

Dimensions H x W x D (mm) 390*390*390

Weight (kg) 20.2 kg

Finish Black

Warranty 5 years for driver
