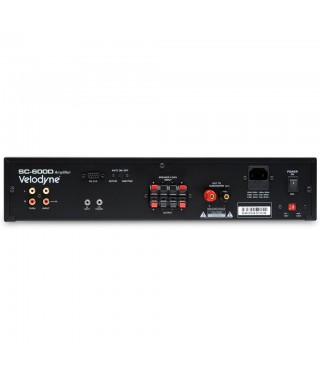

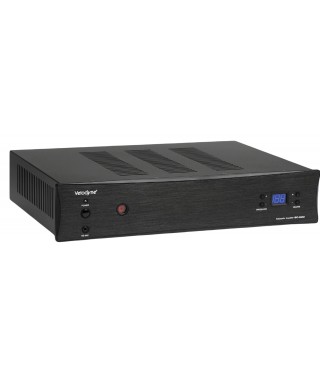

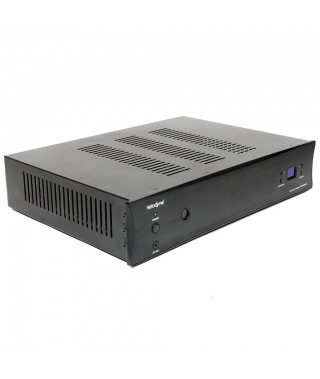

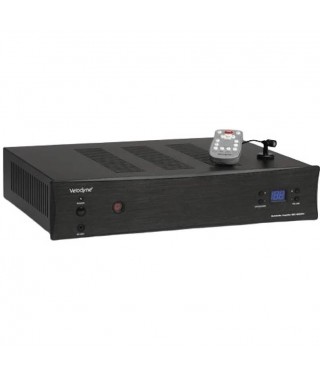

Velodyne SC-600 Subwoofer Amplifier

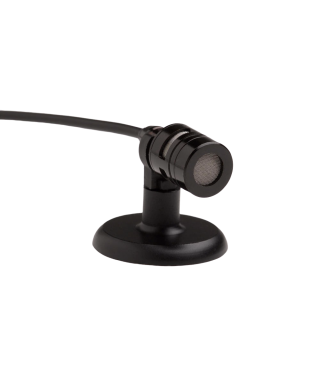

The amplifier comes with a remote control with a one-button, 5-band, Auto-EQ room bass optimization feature, four listening presets, night mode, volume controls, phase control and mute mode. The amplifier front panel has duplicate controls as well as a mic jack for the Auto-EQ function, low pass crossover frequency control, 12-volt trigger, IR repeater jack and an RS-232 control input that is Crestron certified. The crossover can be set from 30 Hz to 160 Hz. The phase can be set to 0, 90, 180 or 270 degrees.

If you are buying an SC-600 series subwoofer, you must power it with either an SC-600 or SC-602 amplifier to reap the benefits of the model-specific EQ settings; no other amplifier includes these. Product Features Superior 400 Watt headroom for dynamic bass with impact and authority DSP digital control and Auto-EQ via included remote and microphone Exclusive Velodyne distortion-limiting circuitry prevents audioble distortion System friendly: 12-volt trigger, IR repeater jack, RS-232 Controllable (Crestron Certified) Twin systems can be run via rear-panel pass through to a second SC-600 amp.

Features

200W RMS Power (400W Dynamic)

Superior Headroom

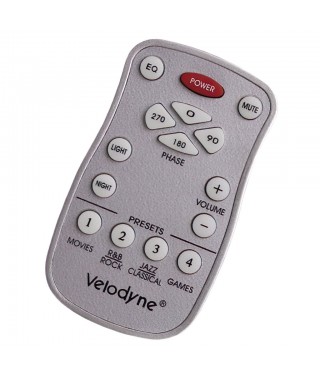

Full Feature IR Remote Control

For SC-600 IW/SC-600 IF/IC Subwoofers

12v Trigger, IR Repeater, RS-232 Controllable

Specifications

Number of Channels 2

Power Rating 200W RMS/400W Dynamic Peak Power

Frequency Response Not Specified By Manufacturer

High Pass Crossover 80Hz @ 6dB/octave

Low Pass Crossover 30 - 160Hz @ 24dB/octave

Signal to Noise Ratio Not Specified By Manufacturer

Phase 0°, 90°, 180°, 270°

Equalizer Yes, 7-Band

Presets Yes, 4 (Movies, R&B/Rock, Jazz/Classical, Games)

Inputs Speaker Level x2 (Binding Posts)

Line Level x2 w/Loop

12V-Trigger x1 (Mini-Jack)

IR Port x1 (Mini-Jack)

Microphone x1 (Mini-Jack)

Output Speaker Level x2 (Binding Posts)

Subwoofer x2 (Binding Posts)

RS-232 Yes

General

Power Requirements 110VAC, 60Hz

Dimensions (WxHxD) 17 x 4.2 x 13" (431.8 x 106.6 x 330.2mm)

Shipping Weight 25 lbs (11.3kg)

Color Black
