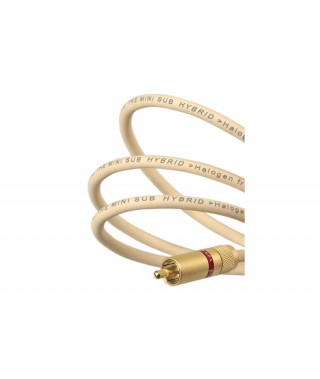

Van Den Hul The Mini Sub Hybrid Subwoofer Cable

Subwoofer Interconnects are specifically engineered with bass conductors to optimise low frequency signal transfer for fast-dynamic, transient bass. As a result, they are engineered differently from your typical RCA interconnect used for connecting components including CD players. The design combination of a superior transmission quality, a very low conductor-conductor capacitance, a very high screening factor together with a high mechanical flexibility and a long durability, though not being easy to manage, successfully has been achieved.

The balanced construction, is made with two centre conductors each having 12 x 0.15 mm. strands. (AWG 24 each, respectively in red and black foamed polypropylene insulation). The conductor material is large crystal OFC with a dense silver coating. The external 5.0 mm. diameter jacket is made of HULLIFLEX a material with superior properties compared to PVC; HULLIFLEX gives The Mini Sub Hybrid a very long life span without any ageing effects. The jacket colour is cream.

Specifications

Design: Subwoofer Cable

Cable Type: Screened Twin Core (Balanced)

Eff Conductor Cores: 0.212 mm2 / Cores ~AWG 24 / Cores 12; Screen: 144

Resistance Cores: 8.5 Ohm/100 m.; Screen: 1.7 Ohm/100 m.

Capacitance: Core-core: 44 pF/m

Conductors: Ultra-Flexible 99.999% Large Crystal Oxygen Free Copper Conductors with a dense Silver coating

Shielded: The cable is shielded to protect delicate signals against interference from external high voltages and currents

Insulation: Cores: Polypropylene foam

Jacket: HULLIFLEX / 300 Vrms min.

Jacket Colour: Cream

Compact Design: A 5mm outside diameter to allow the cable to be used in confined spaces and be easily hidden.

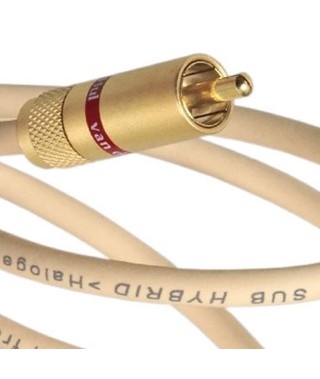

Connectors: Special RCA type C - 5.5 allows ease of installation

Manufacturers Warranty: 5 Years
