Specs and Features

Frequency Response / Acoustic Data:

• 17-260 Hz +/- 3 dB
• Expect 2-3 Hz deeper extension in small to mid-size rooms.
• 2-meter ground plane away from reflective structures (quasi-anechoic)

Subwoofer Specs:

• Premium black ash finish.
• Protective non-resonant steel mesh grille.

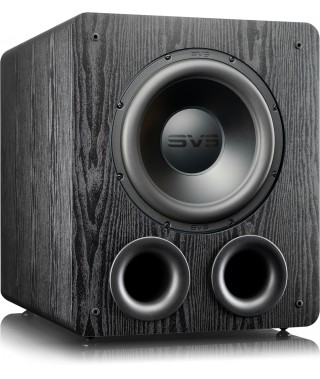

• Front-firing 12" driver.

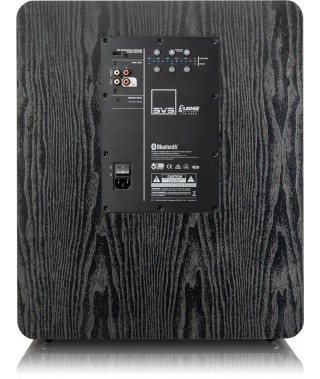

• Rear-mounted amplifier.
• Screw-in rubber feet.
• Robust Medium Density Fiberboard(MDF) cabinet construction.
• Cabinet Dimensions: 20.9" (H) x 17.3" (W) x 23.2" (D) (without grille).
• Overall Dimensions: 20.9" (H) x 17.3" (W) x 25.4" (D) (with grille).
• Weight (unboxed): 65.6 pounds.
• Shipped Dimensions: 30" (H) x 23" (W) x 27" (D).
• Shipped Weight: 82 pounds.

Driver Specs:

• SVS 12” 2000-series driver.
• Powder-coated cast aluminum basket.
• Dual high-grade ferrite magnets.
• Finite Element Analysis (FEA)-optimized motor structure.
• Dual shorting rings reduce gap induction and lower distortion.
• Extended pole piece improves heat sink and thermal management properties.
• 2” diameter, high-power voice coil.
• Upgraded Nomex spider for improved linearity and driver control at extreme drive levels.
• High-quality insulated tinsel leads with 3-point-contact precision alignment.
• Lightweight aluminum cone with polypropylene dust cap provides excellent rigidity and pistonic behavior.
• Low-creep rubber long-throw surround for excellent durability and longevity.

Amplifier Specs:

• Sledge STA-500D DSP amplifier.
• 500 watts RMS continuous (1100 watts peak dynamic).
• Efficient and cool-running Class D topology.
• DSP control for accurate response and refined behaviour under all operating conditions.
• Main power rocker switch.
• Auto-On / On toggle switch.
• 3-12V trigger with 1/8” (3.5 mm) TRS mini-jack input.
• Green standby mode with > 0.5 watts consumption.
• Stereo line-level RCA Input & Output connections.
• Input impedance – 47 kΩ (unbalanced line-level RCA).
• Continuously variable volume/gain control.
• Continuously variable (0-180 degrees) phase control.
• Continuously variable (50-160 Hz) 12 dB/octave low pass filter frequency with disable/LFE setting.
• Fixed 80 Hz 12 dB/octave high pass filter on line level outputs.
• RoHS compliant, lead-free construction and world-wide safety certifications.
• Detachable power cord.
