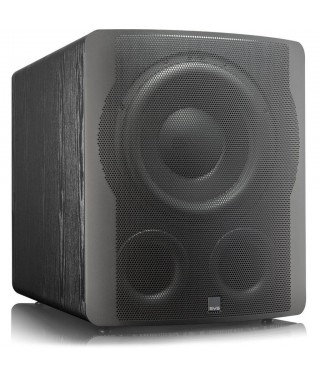

SVS PB-3000 Ported Box Home Subwoofer

New 13-inch SVS driver
All-new 13-inch high-excursion SVS driver with 25 lb. (~11kg) dual toroidal magnet motor delivers punishing low frequency output, while maintaining crisp speed in transients by stopping and starting on a dime. Aluminium vented cone with exceptional stiffness to mass ratio and a proprietary injection-moulded extreme-excursion surround ensure flawless pistonic motion for room-filling bass response with pinpoint control and accuracy.

Sledge STA-800D|2 Amplifier (800W RMS, 2500W peak)
800 watts RMS, 2,500+ watts peak power Sledge STA-800D2 amplifier with fully discrete MOSFET maximises the full potential of the 13-inch driver with effortless power and absolute control. The innovative design combines the efficiency of a Class D amplifier with the ability to move colossal amounts of current through the fully discrete MOSFETs for outstanding real-world subwoofer performance in any system at all drive levels. Features sophisticated 50Mhz High Resolution Analog Devices audio DSP for pristine sound quality through advanced in-room tuning, optimised frequency response curves, DSP controls and more.

Proprietary Voice Coil technology
Flat edge wound split-wind voice coilwithin the motor assembly provides effortless, on-demand power at high excursion, while reducing mass and improving overall driver efficiency. The result is room-shaking output with amazingly precise response when the music, movie or other content demands it most.

Rear Panel Intelligent Control Interface
New Intelligent Control Interface (ICI) rear amplifier panel with touch buttons and an LED bar interface is an SVS first designed specifically for the 3000 Series. Provides control of volume, low pass frequency, phase and other critical functions.

Dual Port Cabinet Design
Unique to the PB-3000, the Dual Port cabinet design draws on the legacy of the 4000 and 16 Ultra Ported Box models to provide impactful, organ-rattling bass in a deceptively small package.

Specifications
Amplifier
800 Watts RMS (2500+ Watts Peak)
Driver
13"
Frequency Response
16-260 Hz ±3 dB (Standard Mode) / 18-260 Hz ±3 dB (Sealed Mode)
Port Size
Dual 3.5"
Height
557mm
Width
465mm
Depth
660mm
Weight
37.30kg
