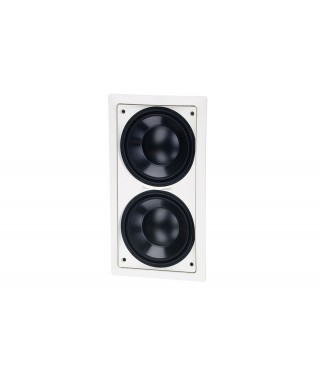

Paradigm PCS-82SQ In-Wall Passive Subwoofer

Features

• Dual 8" Carbon-Fiber-Reinforced polypropylene cone Bass driver

• 1.5" (38mm) Voice coil, Over-molded TPRTM surrounds

• 1.5" (38mm) 4-layer copper wire voice coils

• White finish paintable grille, 10cm Mounting depth

• High-Strength Glass-Reinforced Injection-Molded Polymer chassis and mounting bracket

Paradigm PCS-82SQ Dual 8" In-Wall Subwoofer

Until we released our PCS Series, choice was limited when it came to high-performance in-wall/in-ceiling subwoofers. Most options simply didn’t deliver the kind of big bass performance that got us excited at Paradigm. In fact, the only things those other brands excited were wall vibrations — not a good thing in a custom subwoofer. PCS subs gave you real choices for real bass performance. Our in-wall PCS-82SQ sub gives you even more!

Typically, we suggest a minimum of two PCS subs be used in each system, but the more the better! For all the reasons why, check out our PCS sub section of the site. PCS-82SQ is an animal of a different nature. In one subwoofer, two high-performance 8è woofers do the job of two regular PCS subs. For those with limited space it’s the ideal solution … twice the bass in half the space.

A single Paradigm X-300 amplifier (sold separately) is designed to power one or two PCS-82SQ subwoofers.

Full-perimeter Bracket Design

Unlike typical mounting ears, brackets cover the full diameter or height and width of the speaker chassis to effectively sandwich and strengthen the area around the mounting hole.

Dual Advanced High-Excursion CFP™ Carbon-Fiber-Reinforced Polypropylene Cone

The addition of carbon fiber provides excellent cone rigidity. Over-molded ‘M-roll’ design thermoplastic surround guarantees greater cone excursion and durability.

Powerful Ferrite Magnet and Advanced Motor Structures

1-1/2è (38 mm) voice coil with four-layer high-temperature copper wire wrapped around a polyamide former. FEA-optimized.

High-Strength GRIP™ Glass-Reinforced Injection-Molded Polymer Chassis and Mounting Bracket

Dramatically reduces sound-coloring resonances emanating from the wall.

Specifications

Design

Dual high-excursion driver, in-wall, GRIP™ chassis / mounting bracket

Mid/Bass Frequency Driver

Two 210-mm (8 in) CFP™ carbon-fiber-reinforced polypropylene cones, 38-mm (1-1/2 in) voice coils, over-molded TPR™ surrounds, 38-mm (1-1/2 in) 4-layer copper wire voice coils, high-temperature polyamide formers, ceramic/ferrite magnet structures

Low Frequency Extension

19 Hz (DIN)

Finishes

White, paintable

Weight

8.8 lbs. (4 kg)

Overall Dimensions

9.25" (23.5cm) Height

16.75" (42.5cm) Width

Cut-Out Dimensions

8.125" (20.6cm) Height

15.625" (39.6cm) Width

Minimum Mounting Depth

Depth required is the distance

between 1/2" drywall, or similar material.

3.9375" (10.0cm)

Minimum Internal Volume Required

0.99 cu ft (28 L)
