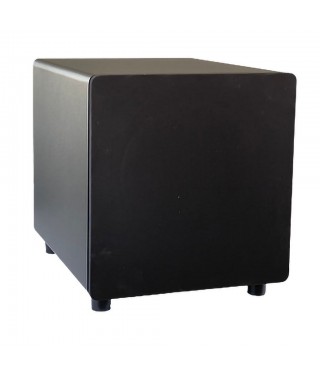

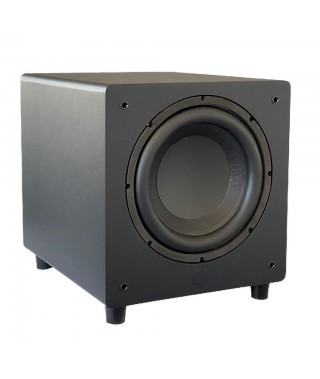

Velodyne Impact X 10" Subwoofer

Full Power Design!

The Impact X series creates a lasting impression with amazing low frequency sound. The music and home theater experience from the smallest possible enclosure benefits enormously from the completely redesigned 10- and 12-inch drivers, which set new standards in this price range.

A highly efficient Class D amplifier, together with core technologies from Velodyne Acoustics, minimize distortion and enable amazing bass performance.

THESE POWERFUL SUBWOOFERS COMBINE EFFICIENT FRONT-FIRING DRIVERS WITH A DOWN-FIRING BASS REFLEX PORT.

Impact: The name says it all. And this all-new design really has the X factor!

Featuring unprecedented technology and performance for the price point, these solidly constructed subwoofers feature 20mm thick MDF cabinets and all new 10 and 12" woofer design.

With up to 500 Watts peak amplifier power (10" model) and down firing bass reflex port, the performance is sublime. Velodyne's advanced anti-clipping circuitry ensures distortion is kept to a bare minimum for clean bass.

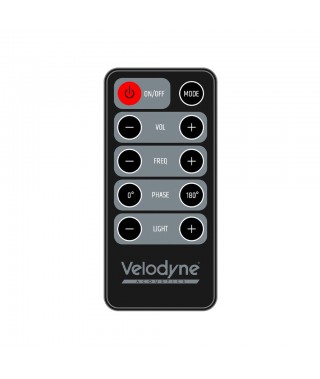

The technology behind the Impact X is another area where Velodyne again demonstrates they are the market leader. Full function remote control, front screen (with adjustable light level) and integrated DSP presets make this an incredibly capable range.

The amplifier has been thoughtfully designed and features loop though for those customers wishing to run multiple subwoofers in their room.

Features

Active 10" driver combined with a bass reflex port

Anti-clipping circuit limits amplifier distortion

250W RMS (500W dynamic) Class D amplifier

Inputs: Gold plated Stereo/LFE RCA, Nickel plated High level in

4 distinct signal processing presets are adjustable via remote control

Specifications

Specifications

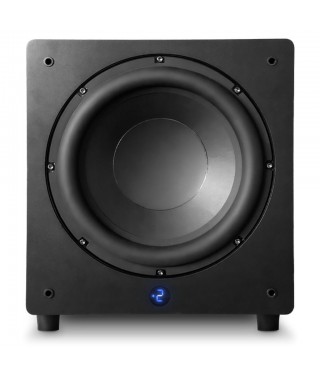

Driver 10" front firing driver

Amplifier Class D 500 watts dynamic

250 watt RMS

Overall Frequency Response: (± 3 dB)

32 – 180 Hz (± 3 dB)

25 - 250 Hz (± 10 dB)

Low Pass Crossover 50 Hz to 180 Hz (12 dB/Octave)

Phase 0 / 180 degrees

Cabinet Design 20mm MDF

Magnet Structure Dual ferrite magnet motor

Woofer 10" high excursion double vented basket driver with reinforced paper Membrane

Voice Coil Four Layer 2″ / 52mm Voicecoil

Input Gold plated Stereo/LFE RCA, Nickel plated High level in

Output Gold plated Stereo/LFE RCA

Power Selector Off / Auto / On

Finishes Black/white

Dimensions (W/H/D) (includes feet and connectors) 32cm x 36cm x 40cm

Weight (approx) 15kg

Shipping Weight (approx) 17kg
