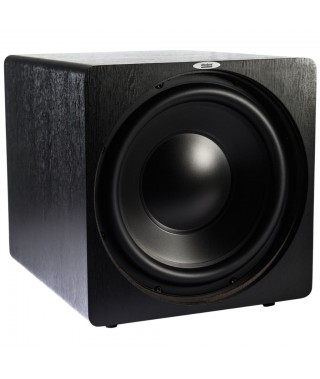

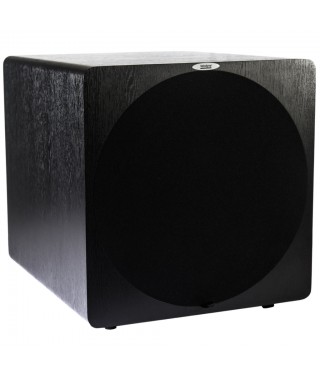

Velodyne Deep Blue 15" Subwoofer

Deep Blue Series - Small and Distinguished

The Deep Blue (DB) series is a brand new subwoofer platform development based on Velodyne Acoustics technologies with a modern styling, unmatched performance with a dynamic and accurate output.

This Platform is a completely new industrial design, new driver technology and a new amplifier design.

Available in 8", 10", 12" and 15" these new DB subwoofer lineup is the predecessor of the successful SPL I series, a very small form factor closed box design.

The completely new rigidly braced MDF closed box design with a front firing woofer for impacting performance without any noise from the cabinet. Due to this small form factor it is easy to integrate into you listening set up. A high excursion driver with massive dual ferrite magnet and optimized internal motor technology, using a 4 layer voice coil for maximum output with extremely low distortion, following the Velodyne Acoustics design principles. Superior bass quality, for a deeper, more accurate bass performance. Line-level and speaker-level inputs let you connect this sub to just about any home audio system.

You can use the variable crossover and phase control to fine-tune the sub's output, so the bass will blend in perfectly with the mids and highs coming from your main speakers, tailor the sub's low-frequency response to the acoustics of your room.

Features

Closed Box Design

Completely new rigidly braced MDF closed box design with a front firing woofer

4 Layer Voice Coil

4 layer voice coil for maximum output with extremely low distortion

High Excursion Driver

High excursion driver with massive dual ferrite magnet

High Flexibility

Line-level and speaker-level inputs for maximum flexibility

Specifications

DB-15

Driver    15″ forward firing

Amplifier Class AB    1000 watts dynamic

450 watts RMS power

Frequency Response: Overall    13 – 200 Hz

Frequency Response: (± 3 dB)    23 – 120 Hz

Low Pass Crossover 50 Hz to 180 Hz (12 dB/Octave)

Phase 0 to 180 degrees

Cabinet Design MDF Closed Box with 52mm / 2” front Baffle

Magnet Structure Dual ferrite magnet motor

Woofer    15” high excursion double vented basket driver with PP inforced Membrane

Voice Coil    Four Layer 3″ / 75mm Voicecoil

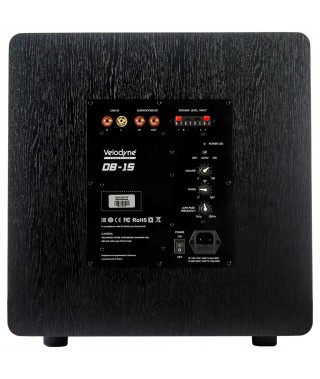

Input GoldPlated Line in Stereo RCA, LFE in, Nickel Plated Highlevel

Output Gold plated LFE /RCA

Power Selector Off / Auto / On

Finishes Black

Dimensions (W/H/D) (includes feet and connectors)    42,5 x 44,5 x 48,8 cm

Weight (approx)    23 kg

Shipping Weight (approx)    25,5 kg
