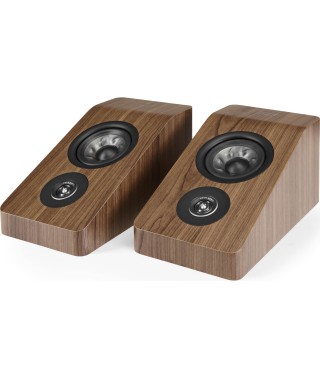

Polk Audio Reserve R900 Height Module Speakers

HEIGHT MODULE

Add R900 height modules to access an IMAX-enhanced world of multidimensional sound. Its unique design means that it can sit atop other Reserve Series speakers or be mounted to the wall, unlocking the Dolby Atmos and DTS:X capabilities of the Reserve Series.

Wall or speaker-mounted

Atmos and IMAX Enhanced certified

Flagship transducer array

Sleek and elegant design

What Better Sounds Like

Whether they're mounted on your wall or placed atop your Reserve Series loudspeakers, the R900s ensure exceptional 3D Dolby Atmos, DTS:X and IMAX Enhananced performance that make eligible movies, music and games sound incredible.

MULTIDIMENSIONAL AUDIO

Amazing Sound and Elegance

Designed to perfectly complement the Reserve series, this optional height module adds exceptionally realistic sound without the hassle of installing speakers in the ceiling.

SIT RIGHT EVERYWHERE

Pinnacle Ring Radiator Tweeter

The Pinnacle Ring Radiator Tweeter’s distinctive pointed shape guides the dispersion of high frequency sounds around a room. This innovation widens the sweet spot and allows you freedom to enjoy your music and movies wherever you choose to sit.

STRENGTH IN MOTION

Turbine Cone Woofer

Our pioneering turbine design delivers a significant increase in cone rigidity without increasing mass. This innovation means the woofer can move with increased accuracy and speed to deliver enhanced sound resolution, enabling you to experience a breathtaking level of detail in your music and movies.

Timbre matched for premium performance

Designed with the same driver components of the Reserve series speakers, you can mix and match to create the ultimate home theater setup.

Flexible placement

The Polk Reserve R900 height module is Dolby Atmos certified and designed to meet DTS:X specification. With the ability to wall mount or place on top of a compatible Reserve speaker, this height module allows convenient flexibility. Flip the switch on the back of the speaker to select the desired position and the speaker will automatically adapt to the optimal performance.

POLK RESERVE

R900 Height Module

Exceptional 3D movie, music, and game sound.

3D Audio Compatible

Delivers 3D audio found in Dolby Atmos, Dolby Atmos height virtualization, DTS, DTS:X, DTS Virtual:X, and IMAX Enhanced soundtracks.

Anti-diffraction Grille Included

Acoustically inert grilles offer a clean aesthetic without sacrificing sound.

Power Recommendations

45W to 100W or more per channel power amplification is recommended to experience the best quality and performance from this speaker.

Why Polk Audio

Experts in Sound

For over 45 years, Polk Audio has designed, engineered, and voiced high-quality loudspeakers, sound bars, and smart speakers. From innovation in tweeter design to the legendary SDA speakers, Polk Audio makes great sound accessible to all.

5 Year Warranty

Best in Class Loudspeakers

Specifications

SPECIFICATION

Speaker Type Height Module

UOM (Sold As) Pair

TRANSDUCER

Tweeter 0.75" Pinnacle Ring Radiator

Mid-range/Mid-bass -

Woofers 4” Turbine Cone

Overall Frequency Response 50 – 50kHz (when wall mounted)

Frequency Response (-3dB limits) 70 – 32kHz (when wall mounted)

Recommended Amplifier Power 45 - 100W

Amplifier Output Compatibility 8Ω / 6Ω / 4Ω

Minimum Impedance (ohms) 4.2Ω

Sensitivity (2.83V/1m) 85.5dB (when wall mounted)

CROSSOVER

Tweeter/Mid-range Crossover Frequency 2100

Mid-range/Mid-bass Crossover Frequency -

MEASUREMENTS

Product Dims W x H x D (Includes width of feet) 166 x 158.3 x 320mm

6.5 x 6.2 x 12.6 in

Product Weights (each) 6.6 lbs/3 kg

Shipping Weight 16 lbs/7.3 kg

CABINETRY

New CRC (Mid-Range Enclosure Type) -

Mid-Bass / Woofer Enclosure Type Sealed

Available Finishes Black / Walnut / White

Feet Pads

Wall-Mountable (keyhole slots) Yes

Binding Posts: Nickel-plated 5-Way Single

CERTIFICATIONS (NON-SAFETY AND REGULATORY)

Hi-Res Certified Yes

IMAX Certified N/A

Shipping Dims (WxHxD) 415 x 370 x 260mm

(16.3 x 14.6 x 10.2) in
