SVS Ultra Elevation Speakers

The Culmination of Sonic Obsession.

When SVS first launched the Prime Elevation speaker, it turned the home theater world on its ear by delivering a direct radiating Dolby Atmos height effects speaker that vastly outperformed any of the conventional “ceiling bounce” models and in-wall speakers. Since that time many brands tried to copy the approach, but none could deliver the total package of performance and versatility. For this reason, it emerged as one of the most popular home theater speakers in the world paired with all different brands.

Ultra Elevation is a larger, higher fidelity version that unleashes greater dynamic output and deeper low frequency extension. It uses the same multi-angle mounting hardware for the ceiling and wall. Ultra Elevation is an ideal speaker for Dolby Atmos or home theater surround sound channels, especially when placement options aren't perfect.

An angled front baffle, diamond coated aluminum dome tweeters, multi-angle mounting bracket, and other advancements embody the uncompromising approach to speaker design.

These innovations are brought to life with painstaking anechoic and real-world voicing. This final bit of artistry place Ultra Elevation among the finest sounding home theater speakers ever developed.

The joy of pristine clarity, absolute transparency, stunning dynamics, and effortless bass for more people than ever. SVS Ultra Elevation deeply connects you to the emotion of sound.

Specifications

Frequency Response / Acoustic Data:

Frequency Response: 48Hz to 40kHz (+/-3 dB)

Nominal impedance: 6 ohms.

Sensitivity: 87 dB (2.83V @ 1 meter full-space, 300-3kHz)

Recommended amplifier power: 20-150 watts.

Speaker Specs:

Elevation Loudspeaker

Piano gloss black, piano gloss white, real black oak veneer finish options

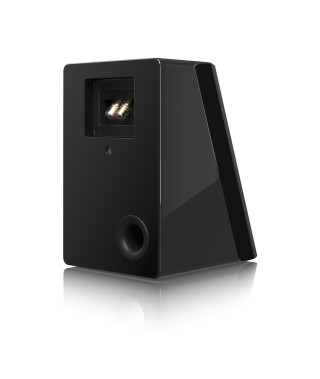

Gold-plated 5-way binding posts

1.4” wide-flared rear-firing port 

Cloth grille with magnetic retention system

Magnetic SVS Logo which can be removed and oriented according to speaker application

Elastomer stick-on bumper feet

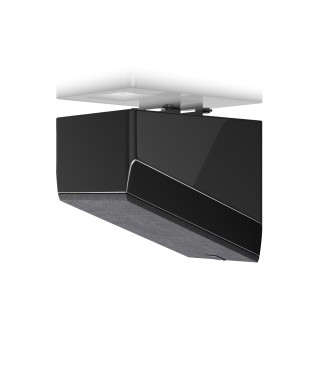

Unique SVS Multi-Angle Wall Bracket system the allows speaker to be wall or ceiling mounted in. Magnetic ceiling lock included.

1/4-20" brass insert for use with included SVS Multi-Angle Wall Bracket and other bracket mounting systems.

Cabinet Dimensions: 11.14” (H) x 7.28” (W) x 8.79” (D) / 283mm (H) x 185mm (W) x 223.2mm (D)

Overall Dimensions: 11.14” (H) x 7.28” (W) x 9.82” (D) / 283mm (H) x 185mm (W) x 249.4mm (D) (includes grille and SVS Multi-Angle Wall Bracket)

Shipped Dimensions: 11.6” (H) x 20.9” (W) x 15” (D) / 295mm (H) x 532mm (W) x 381mm (D)

Weight Packaged: 27.8 pounds / 12.6 kgs

Weight Unboxed: 12.3 pounds / 5.6 kgs

Driver Specs:

1” Diamond Coated Tweeter

FEA-optimized Organic Cell Lattice Diffuser for airy, unveiled highs and pristine clarity.

Cutting-edge vapor-deposition grows a hyper-rigid diamond-like coating on an aircraft-grade aluminum dome, pushing high-frequency extension further beyond human hearing, and delivering best-in-class fidelity, linearity, and transient response.

Silver tinsel leads for optimal signal transfer and power handling.

5.25” Woofer

Long stroke motor and suspension for high output.

Composite glass-fiber cone with excellent stiffness/mass ratio for high sensitivity and pistonic behavior beyond passband.

Precision-cast aluminum alloy baskets ensure precise alignment of critical components and maximize thermal dissipation.

Vented aluminum voice coil former to maximize thermal control while minimizing air compression artifacts at high drive levels.

Crossover & Cabinet Specs:

Crossover:

2-way crossover with premium-grade capacitors, inductors, resistors, and heavy-trace printed circuit board

Tweeter-to-woofer crossover: 1.9 kHz

Cabinet:

Chamfered front baffle and flush-mounted drivers reduce edge diffraction and improve on-axis and off-axis high-frequency response.

Extra-thick 1” (25mm) driver baffle ensures a rigid, resonance-free mounting for all drivers.

FEA-optimized ¾” (18mm) cabinet construction, bracing, and acoustic insulation eliminate acoustic and structural resonances, ensuring an inert enclosure and an uncolored response, even at the highest drive levels.

Angled baffle and optimized crossover combine for perfect acoustic performance at any position.
