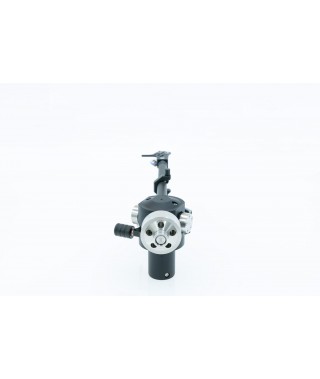

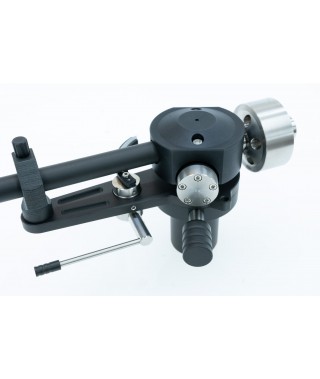

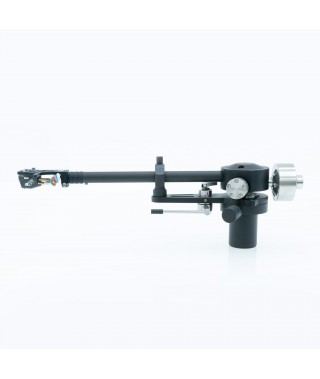

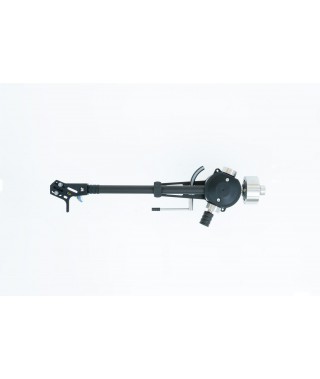

Transrotor TRA Studio 9" Tonearm

The success story of the legendary TRA 9 tonearm from Transrotor has already been written. The idea of ​​bringing another tonearm model onto the market for discerning record listeners was already germinating back then. This has been achieved perfectly with the new, solid and precisely manufactured TRA STUDIO (TRA 9S) tonearm.

The TRA STUDIO (TRA 9S) tonearm is, in a sense, the smaller version of its big brother TRA 9. The most modern manufacturing technologies and excellent materials enable a tonearm with flawless performance. A perfect playing partner, especially for excellent MC systems and available in 9 inch and 12 inch versions.

Features

Material: Aluminium alloy, stainless steel, brass, ceramic, magnetic material, technical plastics, silver, anodized,

Counterweights: Aluminium alloy with interchangeable extra weights (depending on cartridge weight)

VTA adjustment: two screw-in adjustment screws lift the tone arm parallel

Scating setting: Magnetically adjustable via a fine thread, center adjustment 1.8 g (gram) (red line)

Cabling: van den Hul, cartridge connection cable plugs silver-plated

Connection cable: van den Hul 502, fixed, SME/DIN-plug on request

Connection plug: Chinch or XLR special high conductive coated (WBT)

The tone arm is compatible with all 9 inch SME bases manufactured by Transrotor with an extra adaptor

Specifications

Effective length: 232.8 mm (approx. 9 inches)

Tone arm distance: spindle to tone arm pivot point 215 mm

Overhang: 17,8 mm

Offset: 23.66 degrees

Zero point inside: 66 mm

Zero point outside: 121 mm

Effective mass: 18 grams (mid heavy, fitting to almost all cartridges)

Connection cable: length approx. 130 cm

Cable material: van den Hul
