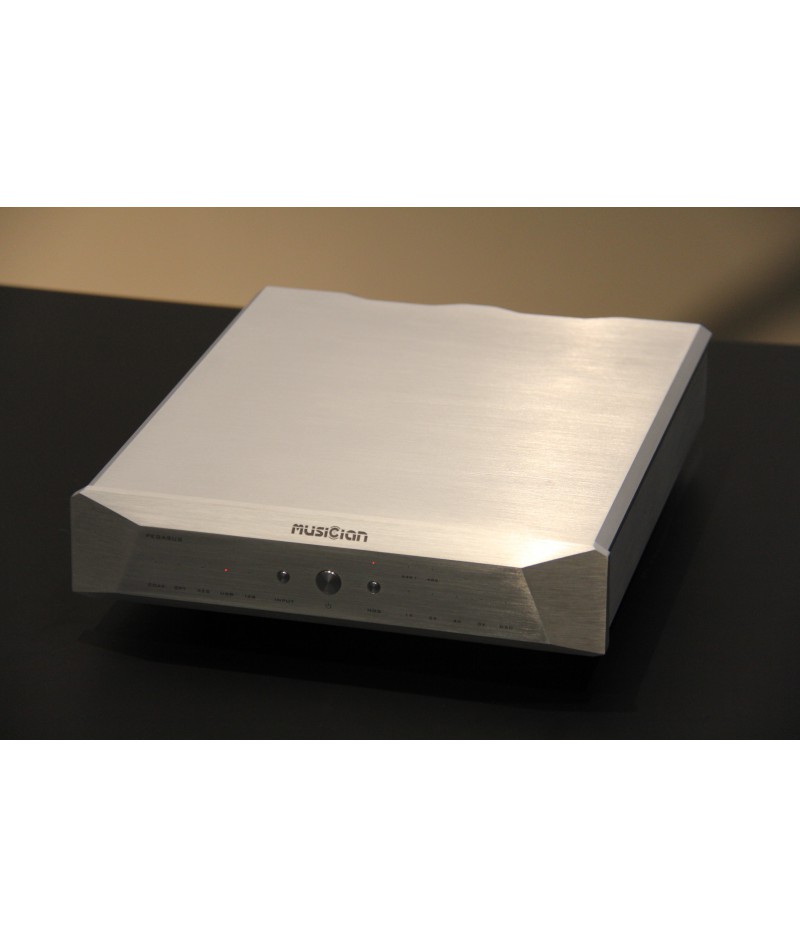

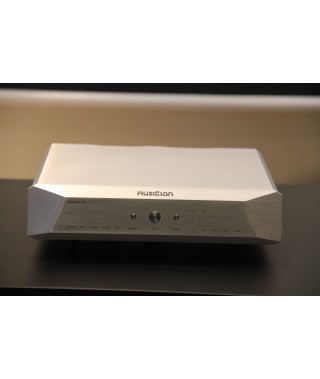

Musician Pegasus R2R DAC Decoder (Trade in)

Trade in, excellent physical condition and function.

Proprietary R2R + DSD Architecture

The Musician Pegasus presents itself as a magnificent and particularly powerful DAC, licensed Thesycon USB Driver For Windows Platform

True balanced 24BIT R2R + 6BIT DSD (32 steps FIR Filters)

Taking advantage of a neat R2R architecture. Integrating the best current technologies, the device benefits from a low-noise power supply, a FIFO buffer, signal processing by FPGA and a FIR filter.

A more than complete connection system

DSD1024, PCM1536 Supports On USB & I2S Input (the audio source needs to be compatible with the native interface). The Musician Pegasus provides you with most of the connections common to today's HiFi devices. We thus find at the input of USB-B, I2S via HDMI LVDS, AES/EBU, Toslink Optics and Coaxial. On the output side, the device offers unbalanced RCA and balanced XLR, the latter output being obviously recommended to take advantage of the full potential of the device.

Warm Tips

The burn-in time of PEGASUS DACs is one week: Standby or Powered on 24/7 (300 hours), you will get the best performance after the enough aging hours.

Connecting RCA or XLR output simultaneously is not recommended, it will degrade the sound quality because they are shared. Even if the downstream equipment is on/off, the output signal will still be transmitted to the input stage of the downstream device.

If possible, please use the XLR output. As a ture balanced DAC, the XLR output of PEGASUS will be more superior.

Specifications

Technical Highlights

Proprietary R2R + DSD Architecture

True balanced 24BIT R2R + 6BIT DSD (32 steps FIR Filters)

Low Noise Power Supply

FIFO Buffer

Digital Signal Processing via FPGA

USB/I2S input supports DSD1024, USB supports PCM1536kHz, and I2S supports PCM768kHz

(audio source must be compatible with local interface)

Proprietary USB Audio Solution via STM32F446 Advanced AMR Based MCU

Licensed Thesycon USB Driver For Windows Platform

Driverless On Mac & Linux

DSD

DSD64-DoP On All Input

DSD1024 On USB & I2S Input

PCM

24bits / 44.1, 48, 88.2, 96, 176.4, 192KHz On All Input

USB input supports 1536kHz, I2S input supports 768kHz

Sampling Mode: Non-Oversampling NOS / Oversampling OS

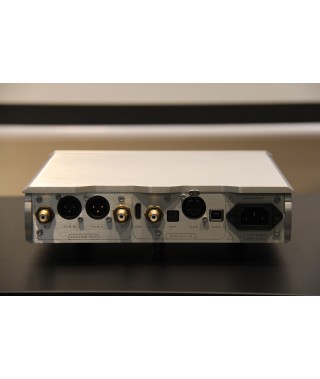

Digital Input

Coaxial*1 via RCA

Optical *1

USB*1

AES/EBU x 1

I2S via HDMI LVDS *1

Technical parameters

Frequency Response: 10Hz~60KHz

Resistance accuracy: 0.005%

THD+N: 0.002%

S/N Ratio: 123dB(A-weighted)

Dynamic Range: >120dB

AC Power Requirement: 110-240VAC, 50/60Hz (Worldwide Voltage)

Power Consumption: ≤20W

Dimension: 280 x 250x 50 mm

Package Dim: 375 x 330 x 115 mm

Package Content: DAC only. No power cord & remote control.

Weight:3.9 Kg

Color: Silver
