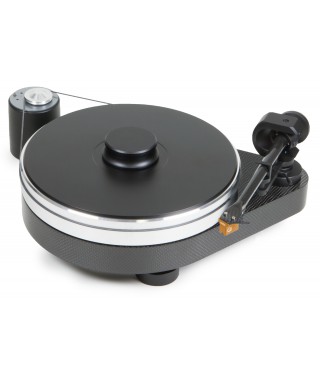

Pro-Ject RPM 9 Carbon Turntable with Ortofon Quintet Bronze Cartridge

The RPM 9 Carbon uses a new extra heavy chassis which features a special CNC machined MDF plate that incorporates hard resin coated steel pellets to form an extra heavy precise sandwich construction.

A special and complex heat treatment and a carbon surface coating ensures superior low resonance levels. The mass-loaded chassis is effectively decoupled from its surface using magnetic feet. With two magnets located in the feet, the turntable is practically floating. The studs in the feet are only used for keeping them centred.

Combined with a new special polished aluminium platter with internal TPE damping and a vinyl layer on top, the inverted ceramic main bearing delivers an absolute stable turntable speed with extra low rumble.

The extra heavy outboard motor unit is equipped with a precise motor control and features a built-in switch between 33 & 45 rpm.

Last but not least, the uncompromising 9“ Evo tonearm with conical carbon-fibre armtube and inverted bearing design ensures perfect tracking, even with demanding cartridges.

Features

Advanced sandwich construction of plinth with combination of MDF, carbon fibre and steel pellets

Plinth manufactured with thermo treatment

Mass loaded subchassis design with magnetic feet

Inverted main bearing with ceramic ball/plate

7,2kg acoustically inert aluminium platter with TPE damping and vinyl mat on the top

DC power supply with AC motor

Precise DC driven AC generator (Speed Box) built-in

Electronic speed control with 33/45 rpm switching

Outboard motor construction with massive steel base

Pre-mounted 9“ Evolution tonearm

5P Connect it Phono CC cable with RCA plugs (XLR available as an option)

Specifications

Speed 33, 45 (electronic speed change)

Drive principle Belt drive

Platter 7.2 kg aluminium (300mm diameter)

Mains bearing Inverted stainless steel with ceramic ball/plate

Wow & flutter 33: +/- 0.60% I 45: +/- 0.60%

Speed drift 33: +/- 0.10% I 45: +/- 0.10%

Signal to noise 73dB

Tonearm 9” CC EVO carbon

Effective arm length 230 mm

Effective arm mass 8 g

Overhang 18 mm

Tracking force 0 - 35 mN

Included accessories 15 volts DC / 800 mA power supply

Power connection 110/240 Volt - 50 or 60 Hz

Power consumption 13 watt max / < 0.3 watt standby

Dimensions 440 x 180 x 325 mm (WxHxD)

Weight 16.5 kg net
