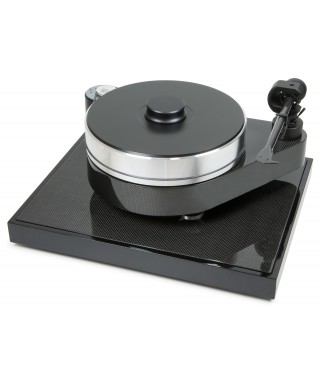

Pro-Ject RPM 10 Carbon Turntable with Ground It Carbon Isolation Base

The RPM 10 Carbon uses a new extra heavy chassis which features a special CNC machined MDF plate that incorporates hard resin coated steel pellets to form an extra heavy precise sandwich construction. A special complex heat treatment and a carbon surface coating ensures superior low resonance levels.

The mass-loaded chassis is effectively decoupled from its surface via the included Ground it Carbon and its magnetic feet. With two magnets located in the feet, the turntable is practically floating. The studs in the feet are only used for keeping them centred. Due to this unique feature the turntable is perfectly decoupled from the surface it is placed on.

Combined with a new special polished aluminium platter with internal TPE damping and a vinyl layer on top, the inverted ceramic main bearing delivers an absolute stable turntable speed with extra low rumble.

The extra heavy outboard motor unit is equipped with a precise motor control and features a built-in switch between 33 & 45 rpm.

Last but not least the non-compromise 10“ Evo tonearm with conical carbon-fibre armtube and inverted bearing design ensures perfect tracking, even with demanding cartridges.

Highly flexible top-grade copper internal wiring. Delivered with top grade 5P phono cable „Connect it CC“ with RCA plugs (XLR as an option).

Features

Advanced sandwich construction of plinth with combination of MDF, carbon fibre and steel pellets

Plinth manufactured with thermo treatment

Mass loaded subchassis design with magnetic feet

Inverted main bearing with ceramic ball/plate

7,2kg acoustically inert aluminium platter with TPE damping and vinyl mat on the top

DC power supply with AC motor

Precise DC driven AC generator (Speed Box) built-in

Electronic speed control with 33/45 rpm switching

Outboard motor construction with massive steel base

Pre-mounted 10“ tonearm 10 cc Evolution

5P Connect it Phono CC cable with RCA plugs

Specifications

Speed 33, 45 (electronic speed change)

Drive principle Belt drive

Platter 10.4 kg aluminium (300 mm diameter)

Mains bearing Inverted stainless steel with ceramic ball/plate

Speed drift 33: +/- 0.11% I 45: +/- 0.10%

Wow & flutter 33: +/- 0.01% I 45: +/- 0.01%

Signal to noise 73dB

Tonearm 10” EVO carbon

Effective arm length 254 mm

Effective arm mass 8.5 g

Overhang 16 mm

Tracking force 10 - 35 mN

Included accessories 15 volts DC / 1600 mA power supply

Power connection 110/240 Volt - 50 or 60 Hz

Power consumption 15 Watts max / < 0.3 watt standby

Dimensions 480 x 210 x 330 mm (WxHxD)

Weight (Turntable) 22,0 kg net

Weight (Base) 14,5 kg net
